Diesel Dumpsters

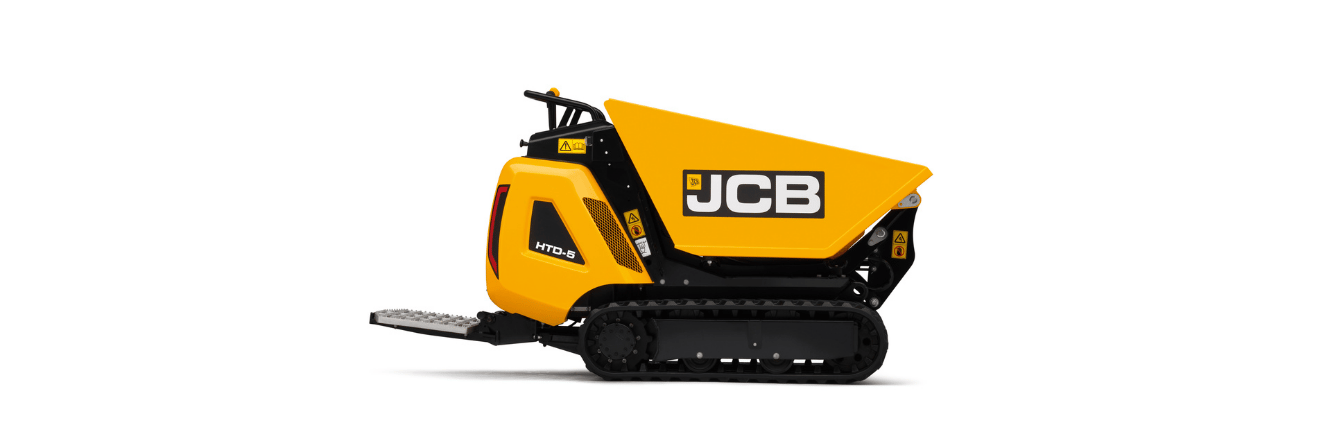

The new HTD5 is a compact, ride-on, high-tip, diesel-powered Dumpster, designed by JCB to save you time, energy and money.
- Maximum machine width of just 706mm fits through a standard doorway.

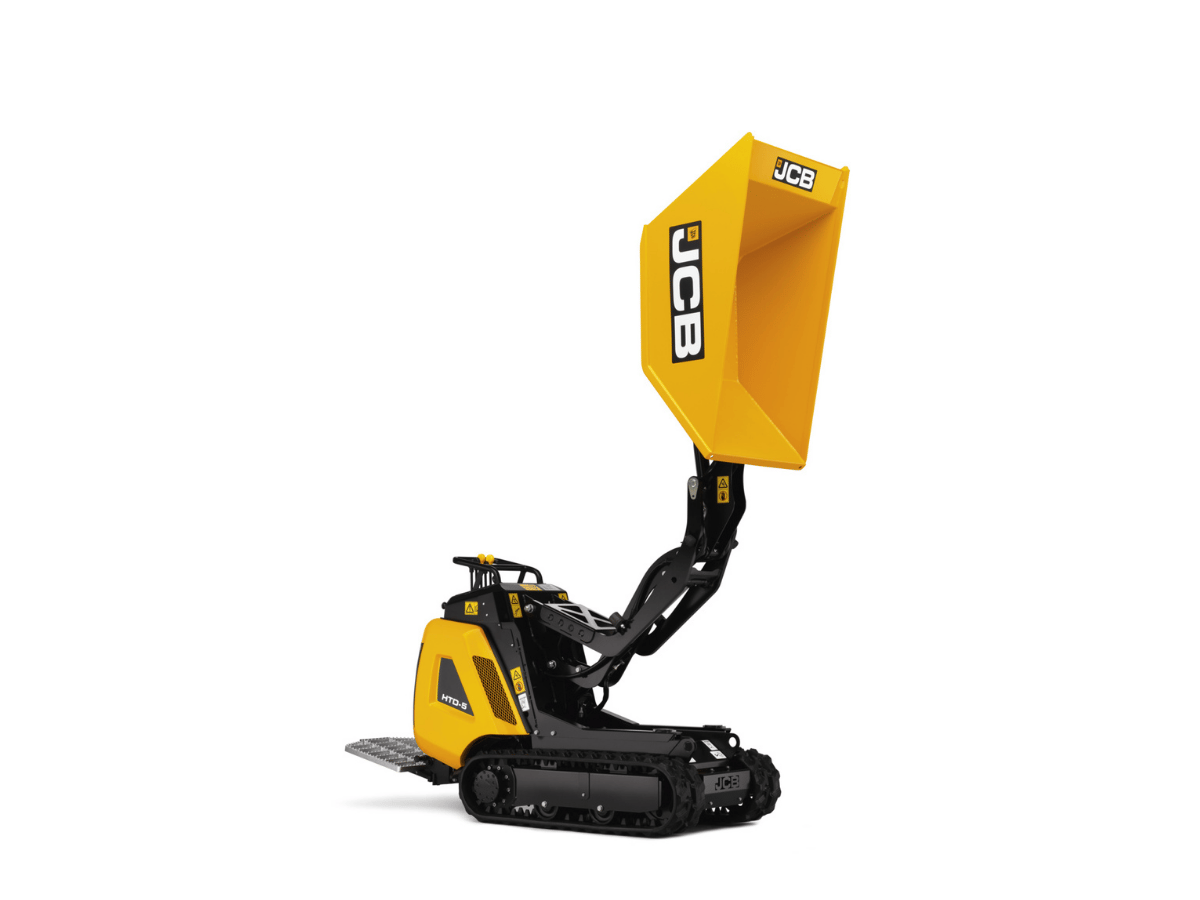

- Tip height of 1.45m, allowing you to empty into a skip or high sided vehicle
- High carrying capacity of 500kg, lets you do more in less time

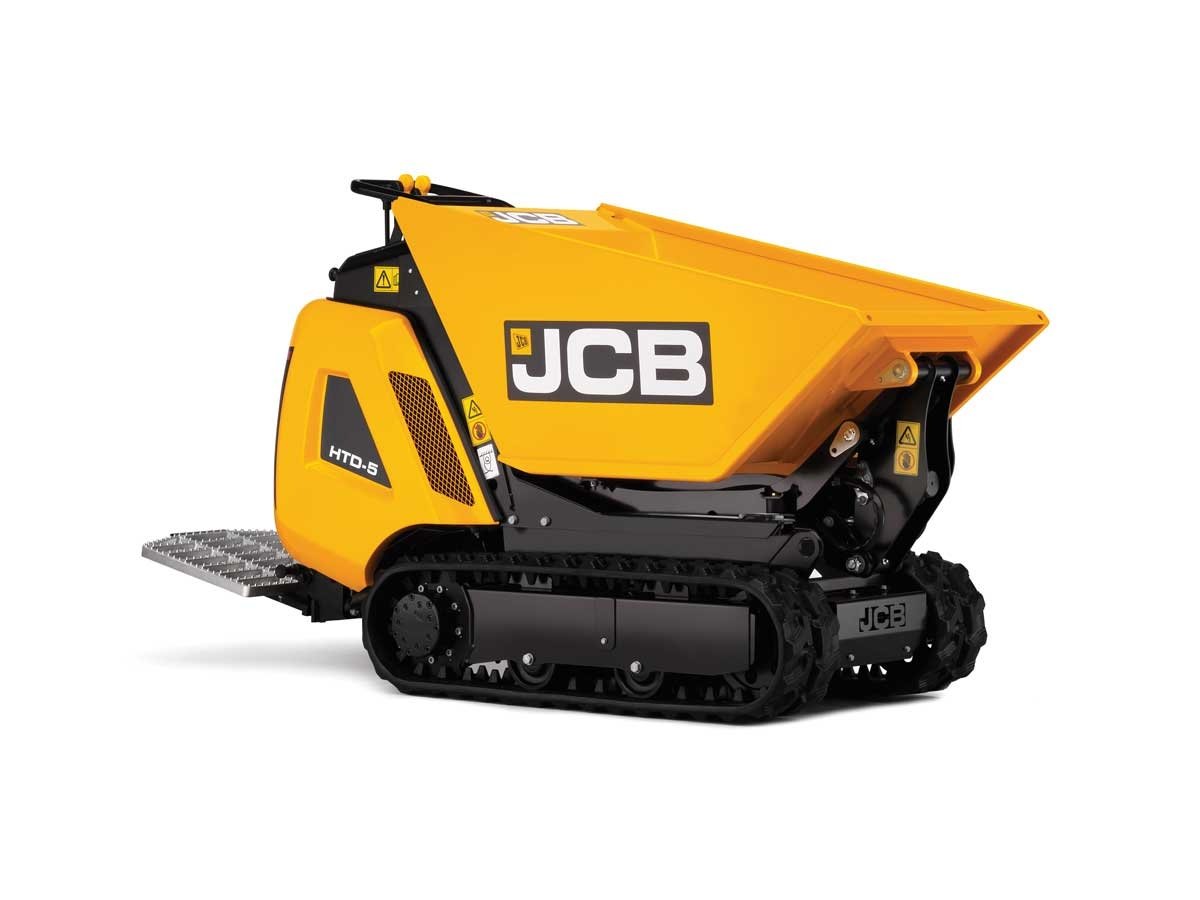

- A new optional SmartStep, that enhances operator comfort
- Two speed tracking, provides precision and accuracy at low speeds
- Stage V 4.4kw (5.9hp) Kohler Diesel Engine
- CESAR Datatag option
- Large opening panel for easy checks, servicing and maintenance
- New machine isolator, increasing on-site machine security
| Diesel Dumpster | ||
|---|---|---|
| Specification | Unit | Value |
| Maximum engine power | kW (hp) | 4.4 (5.9) |
| Maximum carry capacity | kg (lb) | 500 (1,102) |
| Machine weight without step | kg (lb) | 515 (1,135) |
| Machine weight with step | kg (lb) | 590 (1,300) |
| Maximum machine load without step | kg (lb) | 1,015 (2,238) |
| Maximum machine load with step | kg (lb) | 1,090 (2,403) |
| Maximum machine width | mm (ft-in) | 706 (2-4) |
| Overall height (transport position) | mm (ft-in) | 1,106 (3-6) |
| Minimum skip height (transport position) | mm (ft-in) | 780 (2-6) |
| Maximum height (tipping position) | mm (ft-in) | 2,720 (8-9) |
| Skip ground clearance (tipping position) | mm (ft-in) | 1,450 (4-8) |
| Two-speed tracking maximum speed | kph | 3 |
| Fuel tank capacity | litres (in³) | 4.3 (262) |
