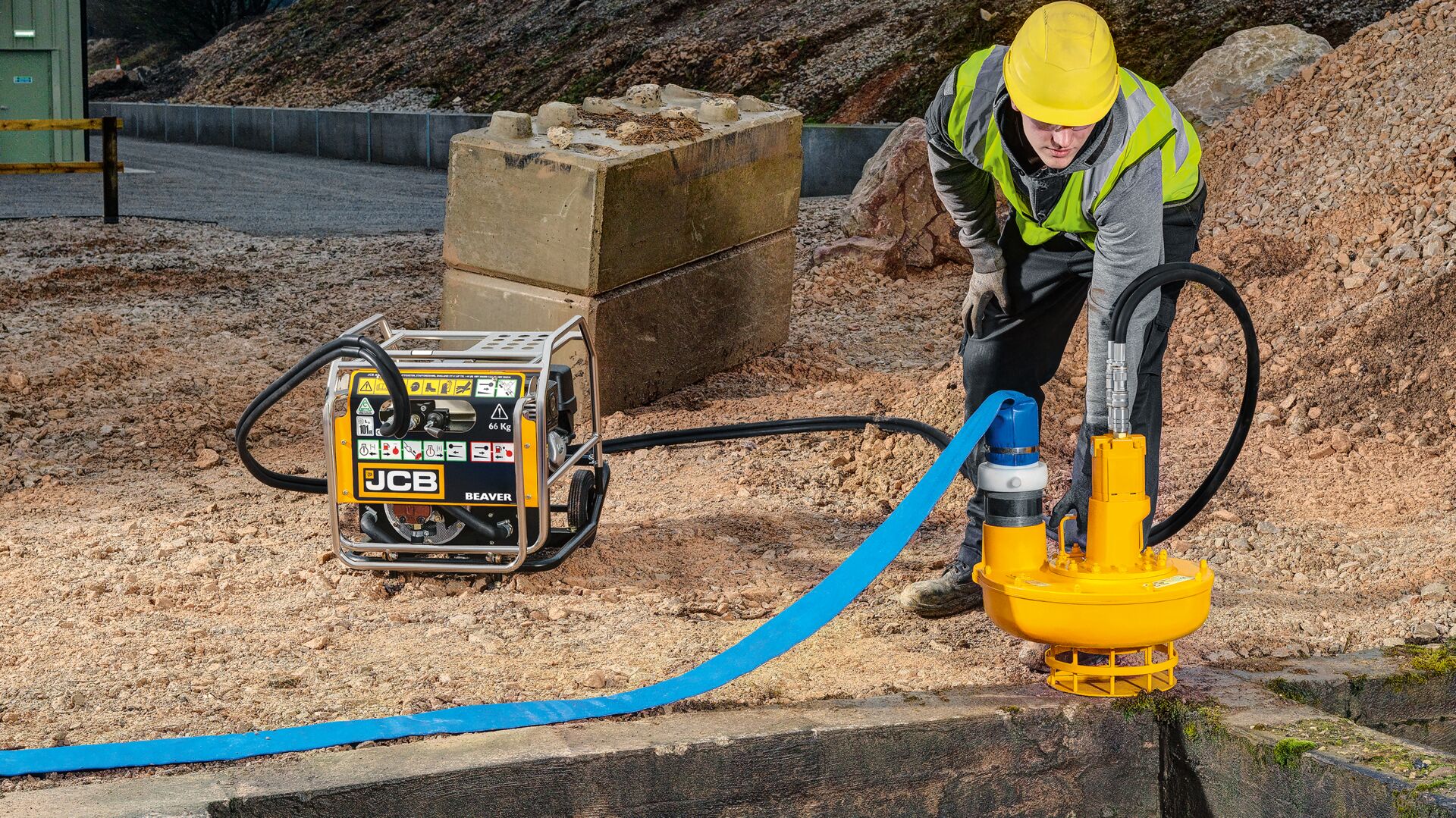

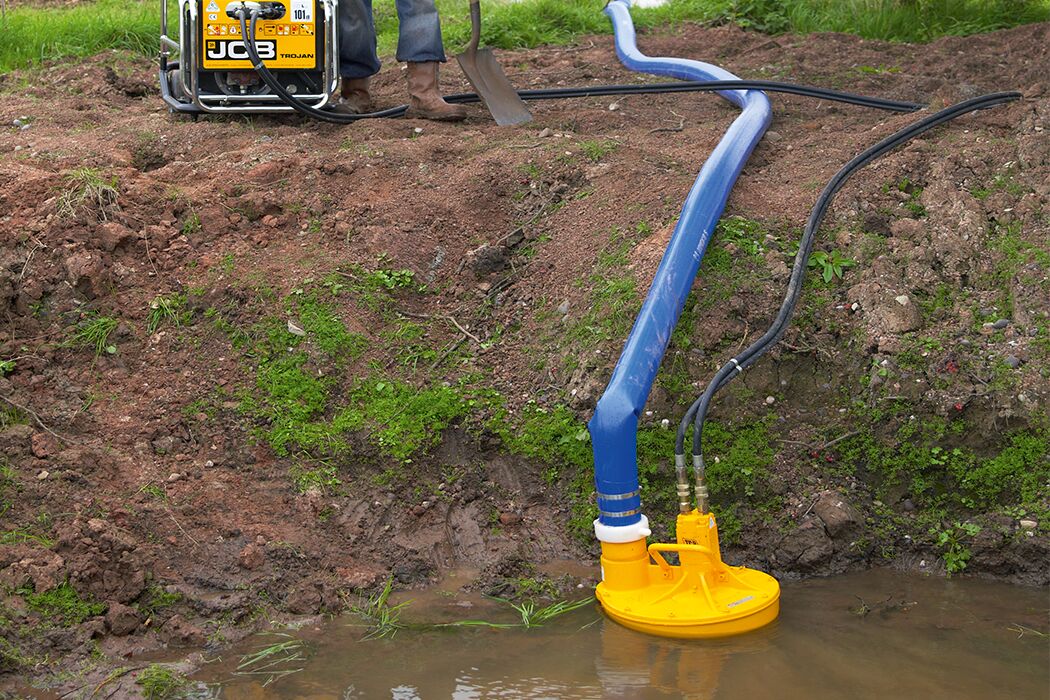

JCB Trash Pumps are designed to handle demanding dewatering applications where water contains mud, sand, leaves, twigs, sewage, and sludge. Built for tough site conditions, these rugged and durable pumps can process materials that would clog many conventional pumps. Their submersible design makes them ideal for construction, industrial, and utility environments. Available in 20-litre and 30-litre flow rate options, they provide reliable performance across a range of pumping tasks.
JCB Trash Pumps deliver greater lift heights than traditional suction pumps, helping move water efficiently from challenging locations. The self-priming design allows for quick operation with minimal setup time. They can also run dry without causing damage, increasing versatility and reducing downtime. A unique combi-seal system helps protect the main pump seal, extending component life and improving reliability. Sealed bearings are rated for up to 5,000 hours of operation, minimising maintenance requirements and lowering ownership costs.
The removable wear plate helps protect the pump housing from abrasive materials, extending service life. Robust construction ensures dependable operation in harsh working conditions. Designed for efficiency and durability, these pumps provide consistent performance when handling contaminated water.
| Model name | Trash pump | Trash pump |
|---|---|---|
| Part number | 980/A4874 | 980/A4869 |
| Intake port | 102 mm | 102 mm |
| Discharge port BSP Male | 100 mm | 100 mm |
| Hyd. flow range | 0 - 20 l/min | 0 - 30 l/min |
| Maximum discharge | 2160 l/min | 2640 l/min |
| Maximum head | 10.5 m | 15 m |
| Operating pressure | 138 bar | 138 bar |
| Weight | 32 kg | 32 kg |
| Width x height | 492 x 511 mm | 492 x 511 mm |
| EHTMA class | C | C |
| Beaver Compatible | Yes | No |
| Trojan Compatible | No | Yes |
